Features & Highlights
- Dual production areas
- Dual side expanders

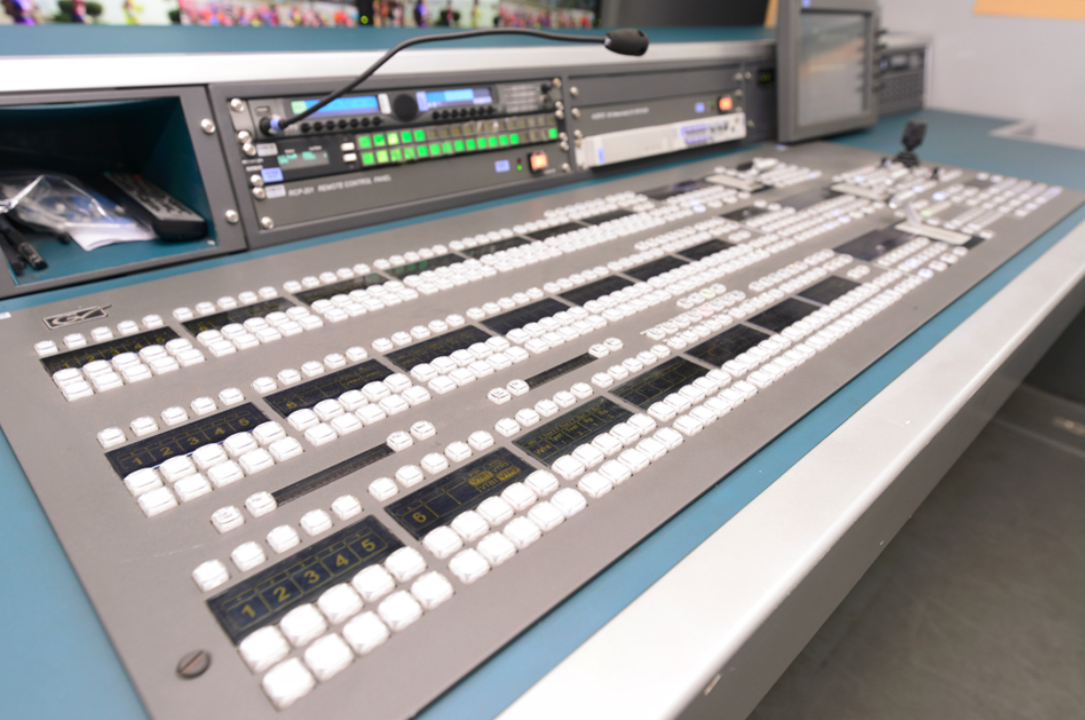

- GV KARRERA KCS 3ME
- Ikegami high-definition cameras
- Stereophonic and Dolby 5.1 surround sound production
Dimensions
- Dimensions in driving mode, including the cab: 16M*2.5M*4M
- Dimensions in driving mode, excluding the cab: 13M*2.5M*4M
- Dimensions in expanded mode, including the cab: 16M*4.5M*4M
- Dimensions in expanded mode, excluding the cab: 13M*4.5M*4M
- Area required for OB truck in working mode: 108 square meters (18M*6M)

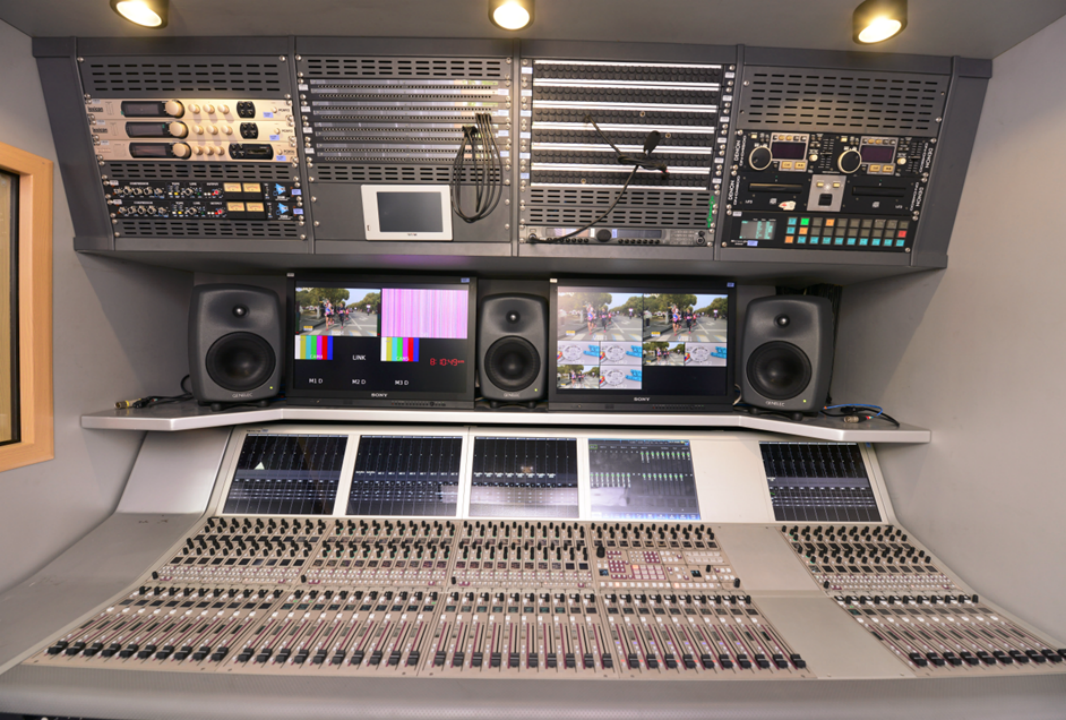

Audio
- TAMURA NT880 digital audio mixer, 256 inputs and 56 outputs
- 50 physical faders, DSP processing channels: 256
- Backup audio mixer configuration: YAMAHA DM1000
Cameras
- Camera model: Ikegami HDK-79GX, Quantity: 14
- Base station model: Ikegami BS-98, Quantity: 14
- High-speed camera model: Ikegami HI MotionⅡ, Quantity: 2
- High-speed base station model: Ikegami CCU-970HM, Quantity: 2
- Standard lens model: Fujinon HA18X7.6BERD-S6B, Quantity: 4
- Wide-angle lens model: Fujinon HA14X4.5BERD-S6B, Quantity: 4
Canon HJ14E×4.3BIASES, Quantity: 4
- Telephoto lens model: Canon HJ40X14BIASD-V, Quantity: 4
Fujinon HA42x9.7BERD-U48, Quantity: 4
- Box-type large zoom model: Fujinon XA77*9.5BESM-S35, Quantity: 2
Fujinon XA99*8.4BESM-T35, Quantity: 2
- Tripod model: Sachtler 250PLS
Sachtler 180PLS
Communications
- Communication matrix model: TELEX ADAM-M, Matrix scale: 64 channels
- Panel configuration model: RP1032RCKP12CLD/RC, Quantity: 1
- Features: 32-key color Chinese panel with auxiliary interface / 12-key color Chinese panel with auxiliary interface
- Panel configuration model: KP12CLD/RC, Quantity: 21
- Features: 12-key color Chinese panel with auxiliary interface
- PL channel quantity: 96
- Four-wire to two-wire device model: DSI-2008, Quantity: 2
- IFB channel quantity: 4, Beltpack quantity: 5
- Wireless beltpack channel quantity: 2
- Wireless beltpack base station model: Clear-Com DX210, Quantity: 1
- Wireless beltpack quantity: 4
- Intercom channels: 4
- Model: MOTO GP328, Quantity: 16
- Telephone coupling equipment model: TIF2000A, Channel quantity: 2
