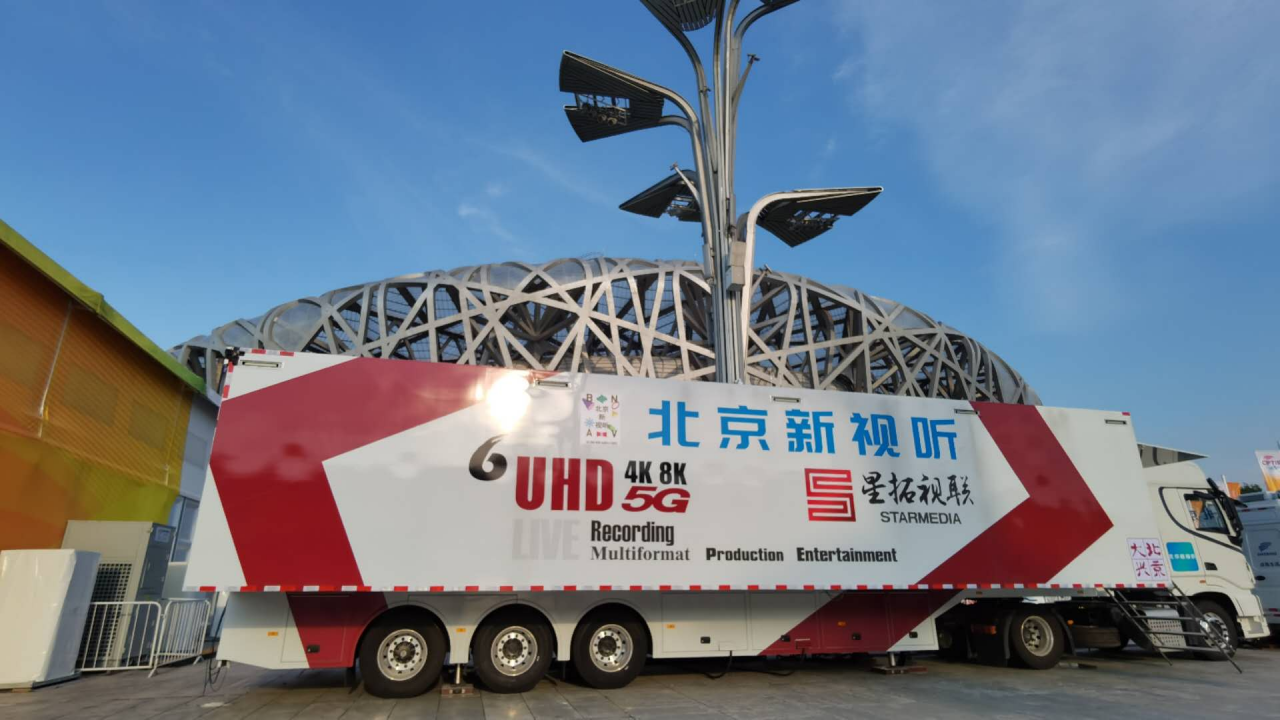

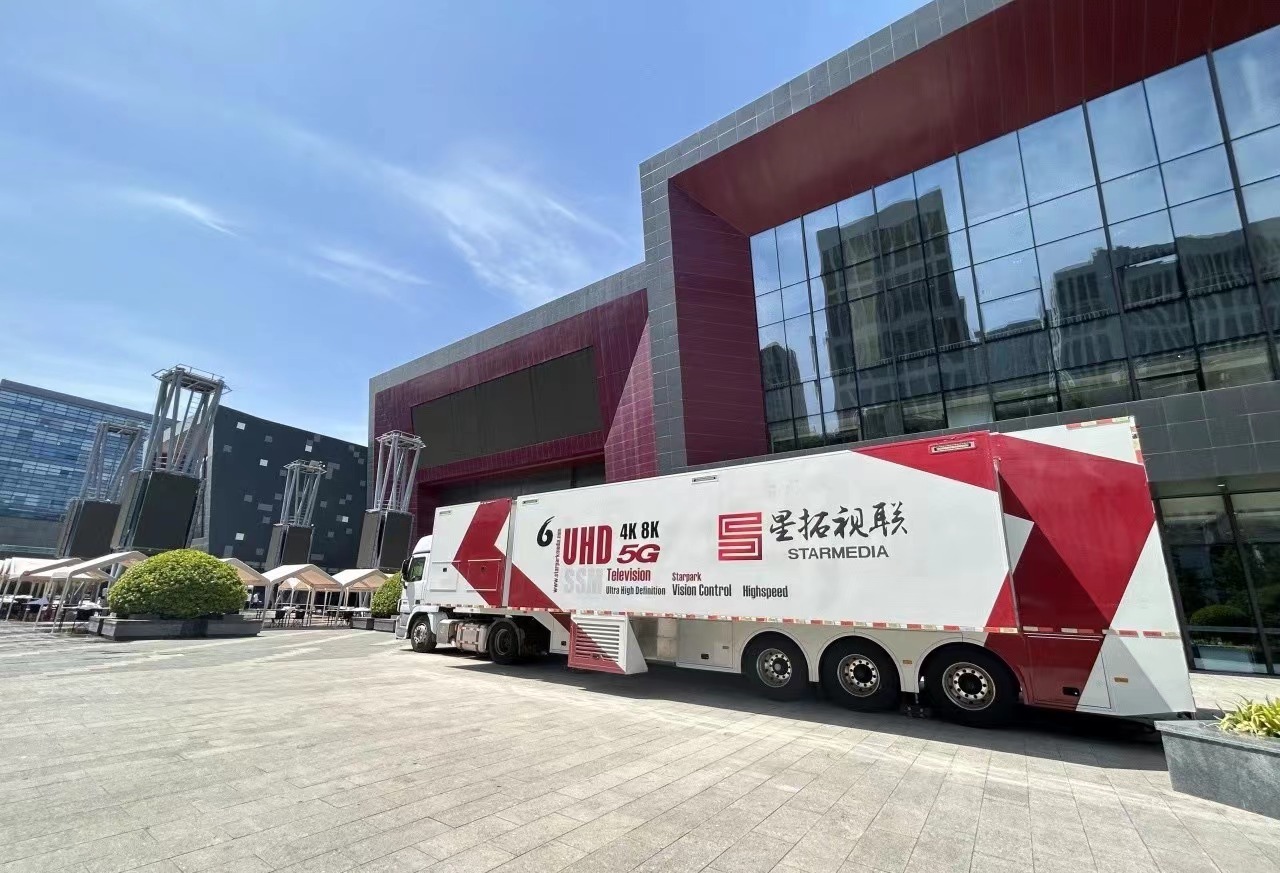

OB6

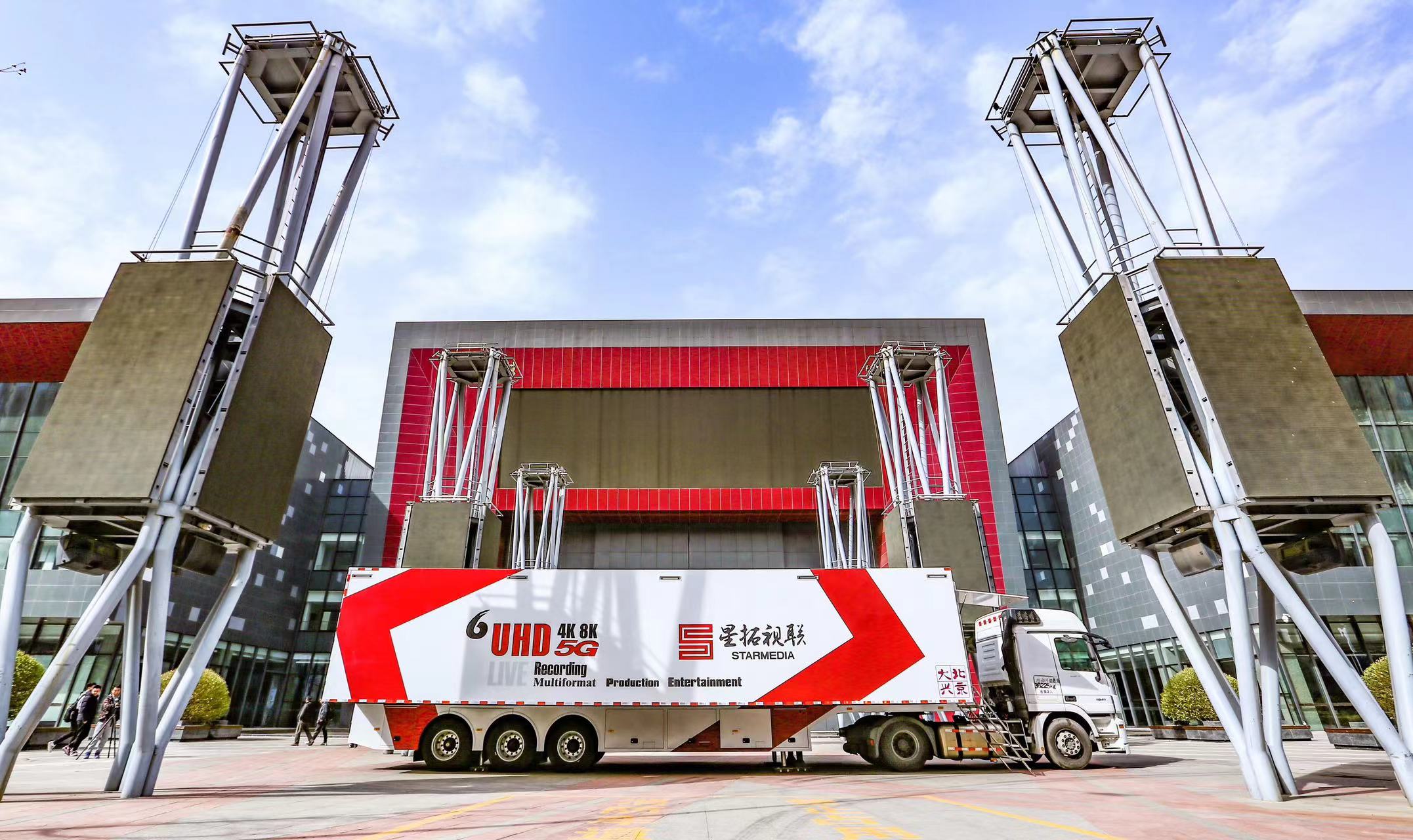

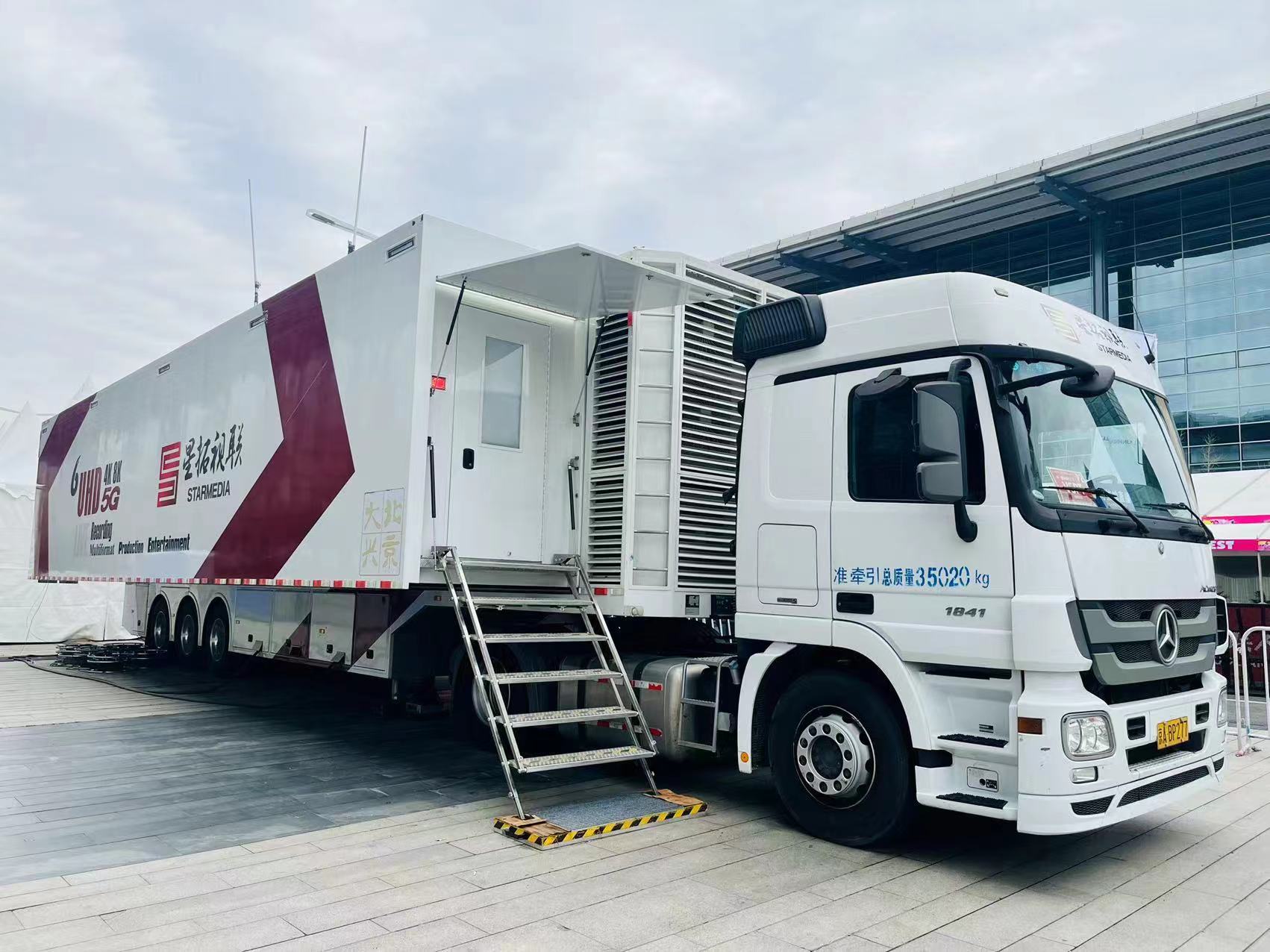

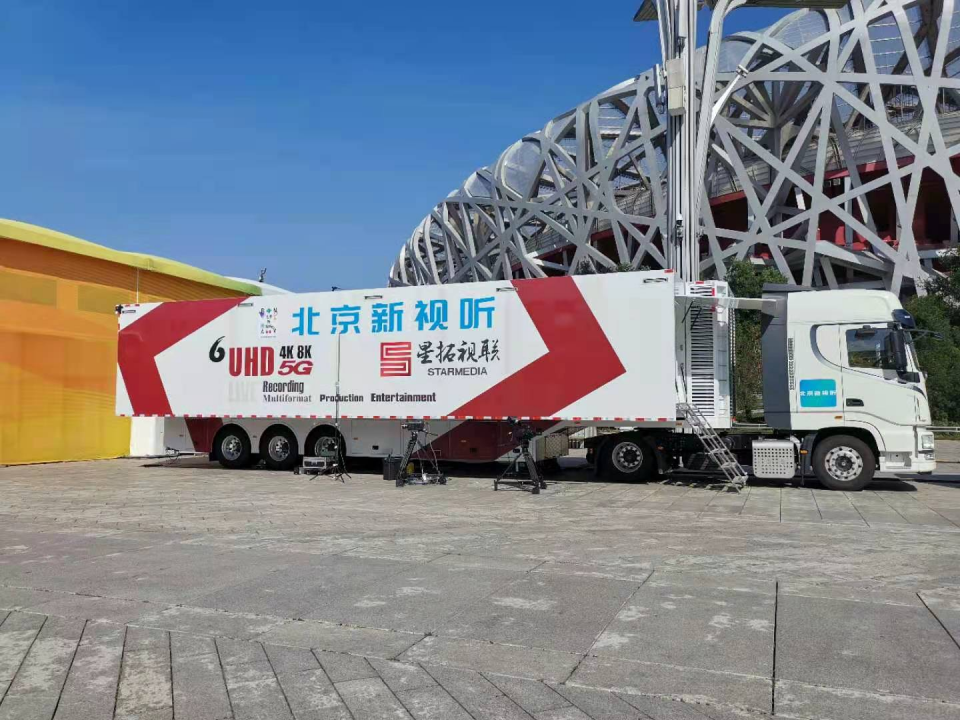

Vehicle Configuration Parameters

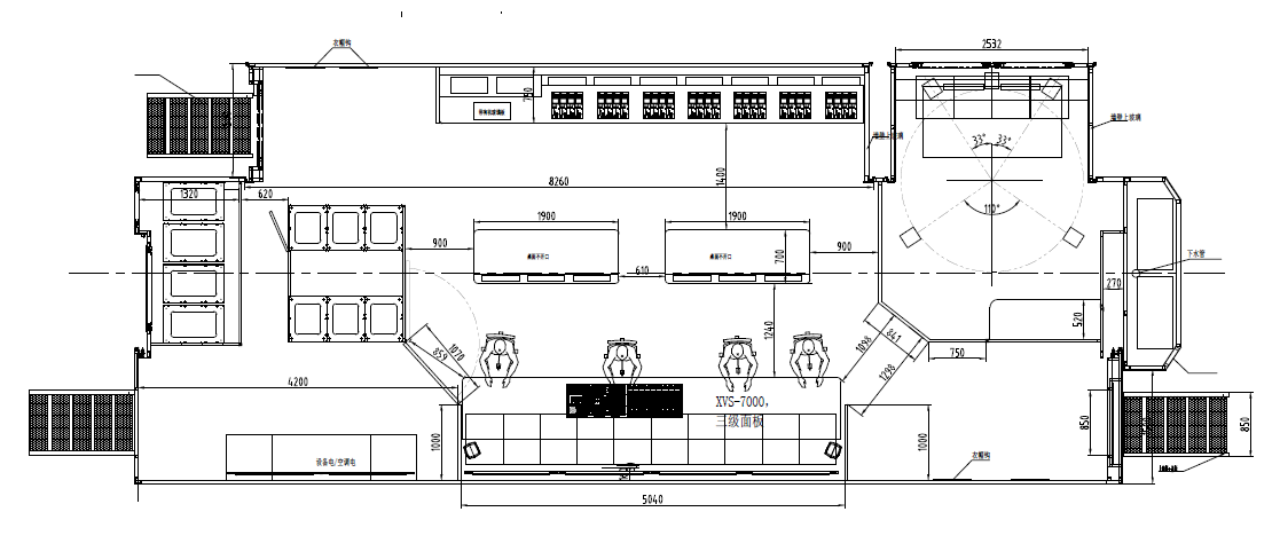

Dimensions
- Length, width, and height of the vehicle in driving mode, including the cab: 17M*2.5M*4M
- Length, width, and height of the vehicle, excluding the cab: 13.75M*2.5M*4M
- Length, width, and height of the vehicle in expanded mode, including the cab: 17M*5.5M*4M
- Length, width, and height of the vehicle in expanded mode, excluding the cab: 13.75M*5.5M*4M
- Area required for the OB van in expanded working mode: 140 square meters (20M*7M)
Weight
- Total vehicle weight: 3600KG
Power
- Power supply specifications: 380V three-phase five-wire system, 35KW
- Cable length: 100M
- Equipment power specifications: 380V three-phase five-wire system, 60KW
- Cable length: 100M
- UPS parameters: 380V 15KW 30 minutes+
- Brand/model: Emerson, Quantity: 3
System Configuration Parameters
System Features and Highlights

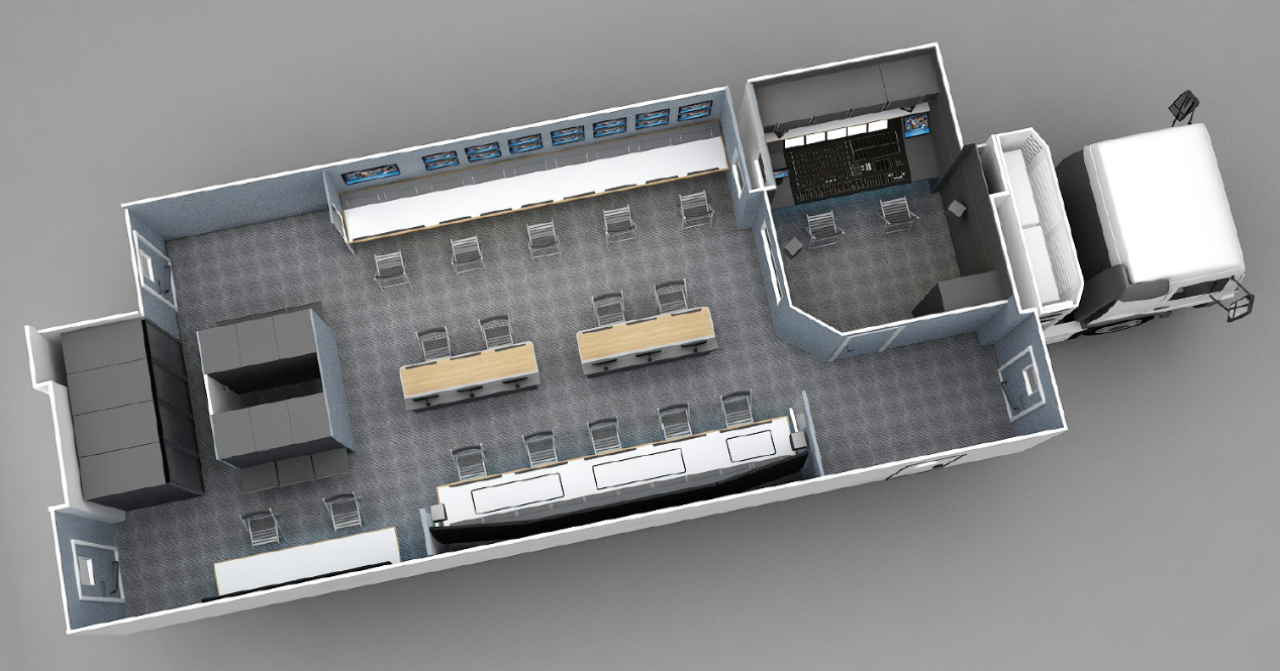

- Dual production areas
- Dual side-pull boxes
- IP SMPTE ST 2110 network architecture
- SONY XVS-8000 3M/E 4K IP switcher
- SONY HDC-4300 4K IP cameras
- Stereo and Dolby 5.1 surround sound production

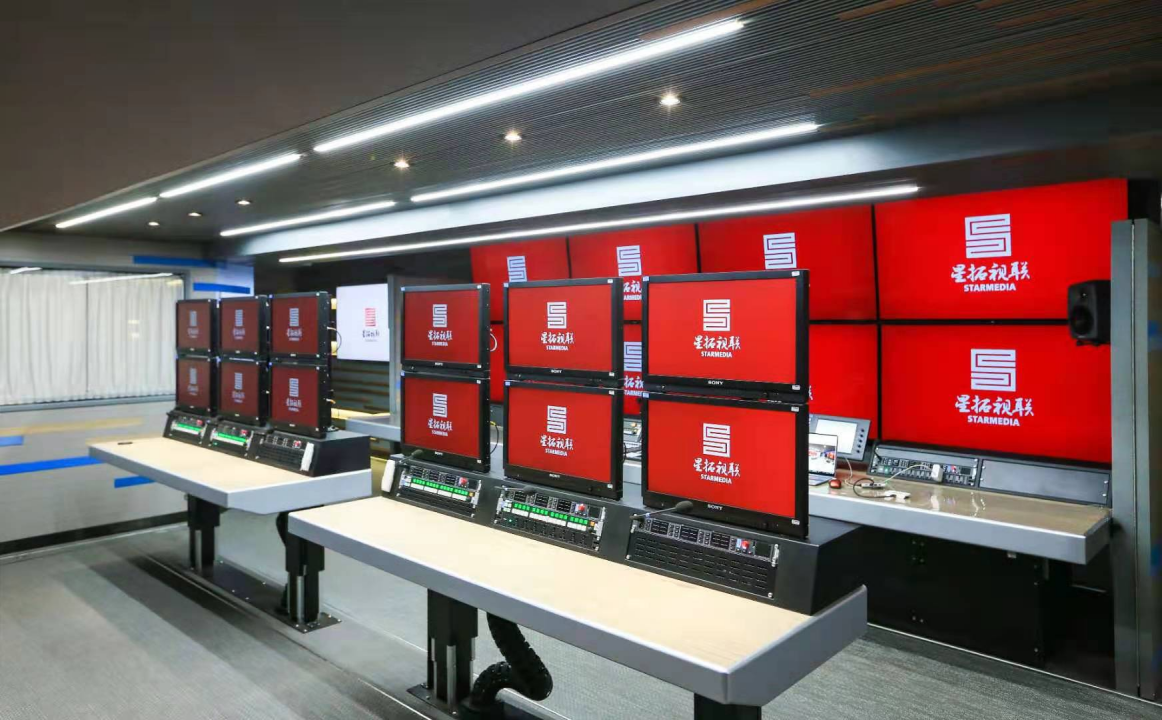

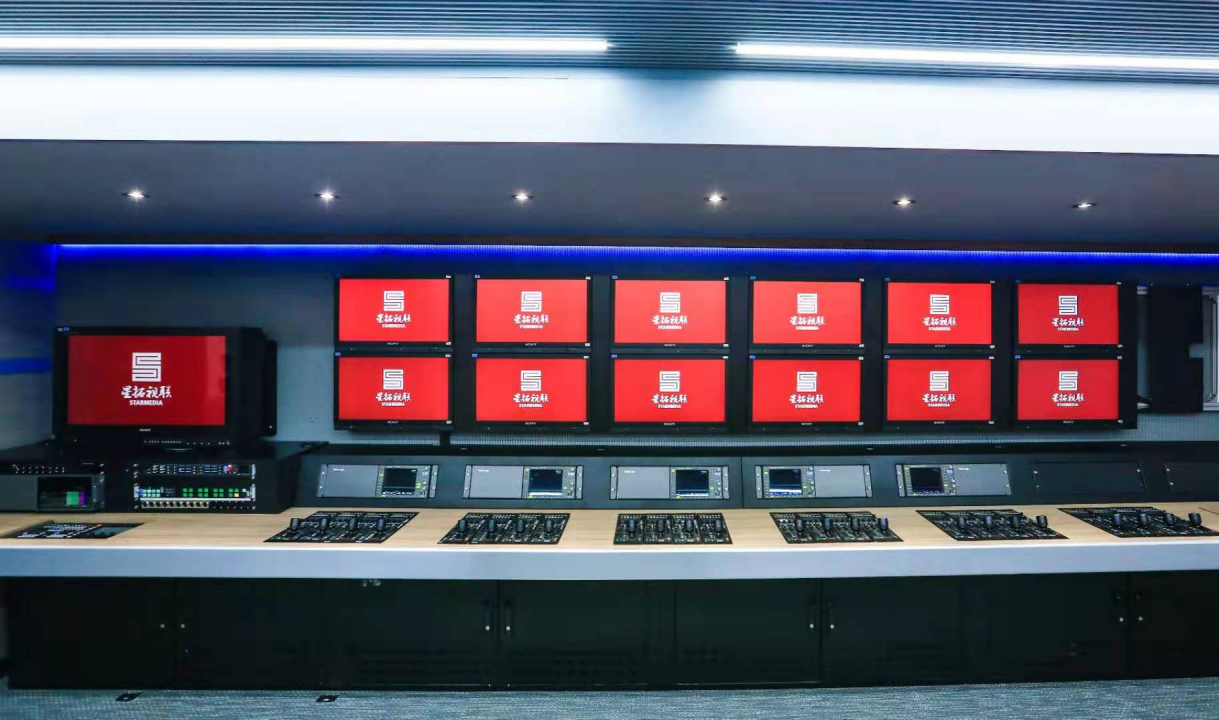

Production

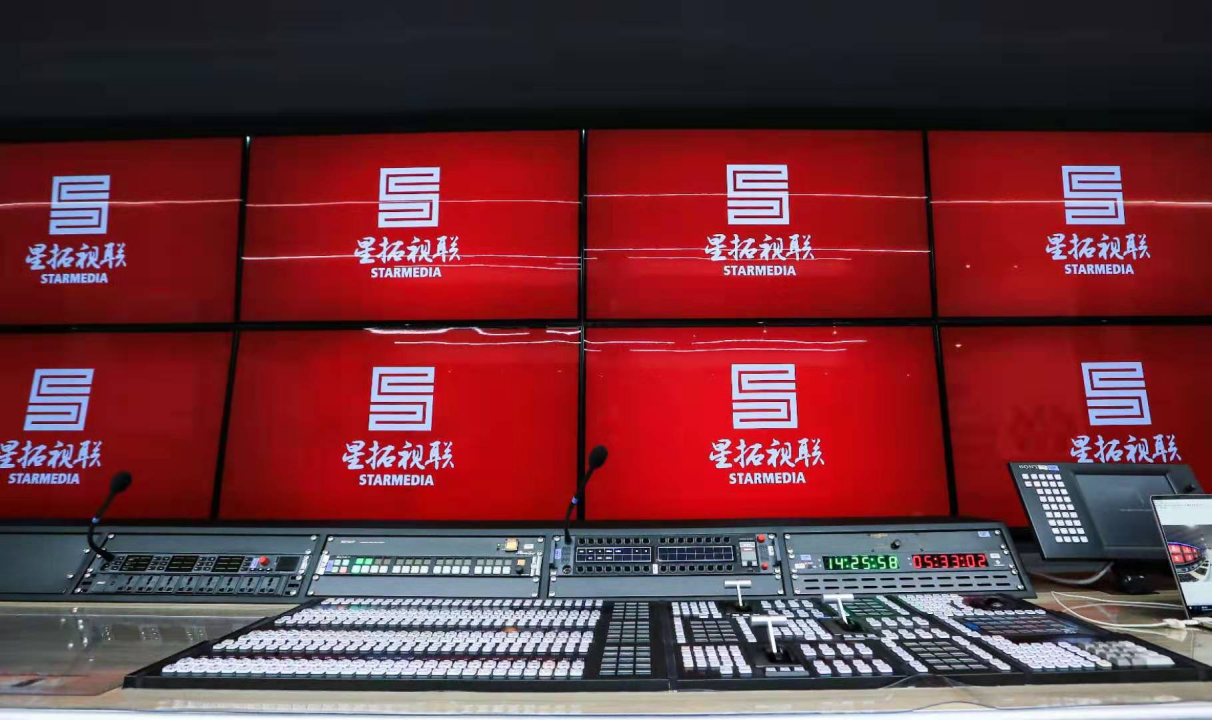

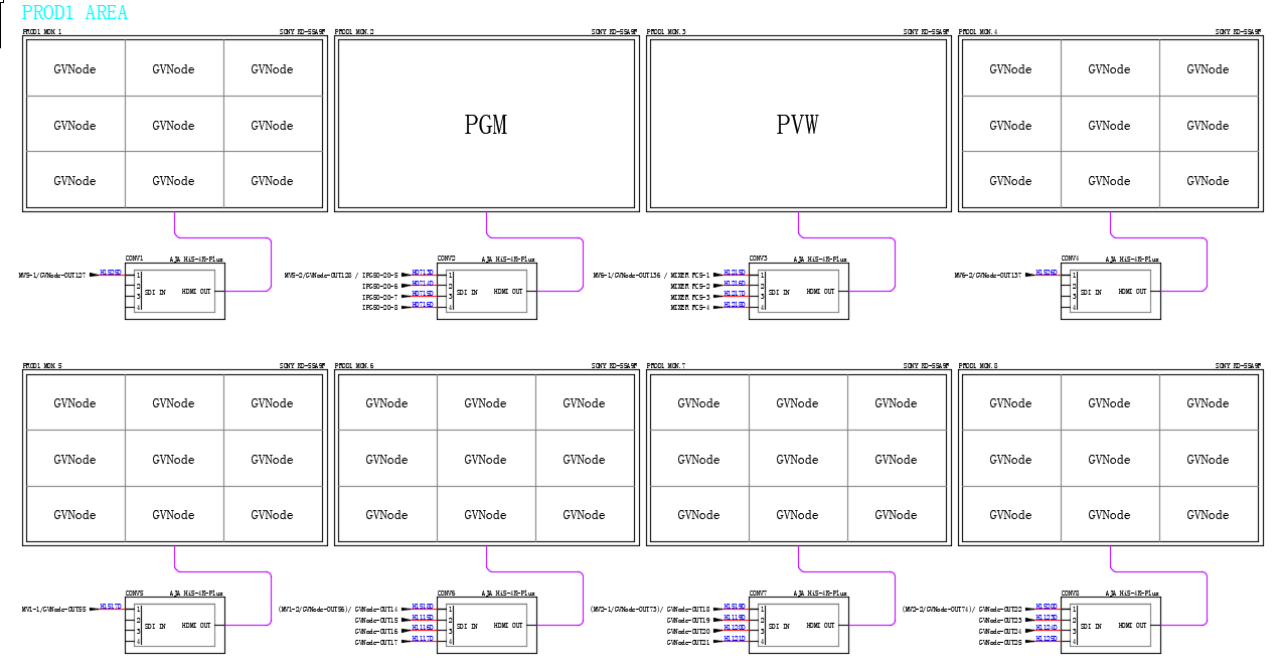

First Production Area 4K Switcher
- SONY XVS-8000 3M/E 4K switcher with 40 4K inputs and 16 4K outputs
- 3 M/E with 28 direct-cut buttons
- Each M/E has 4 full-function key controllers in 4K mode and 8 full-function key controllers in HD mode
- 1 channel 4K DME
- Built-in frame memory of 64G
- 2-channel picture splitter

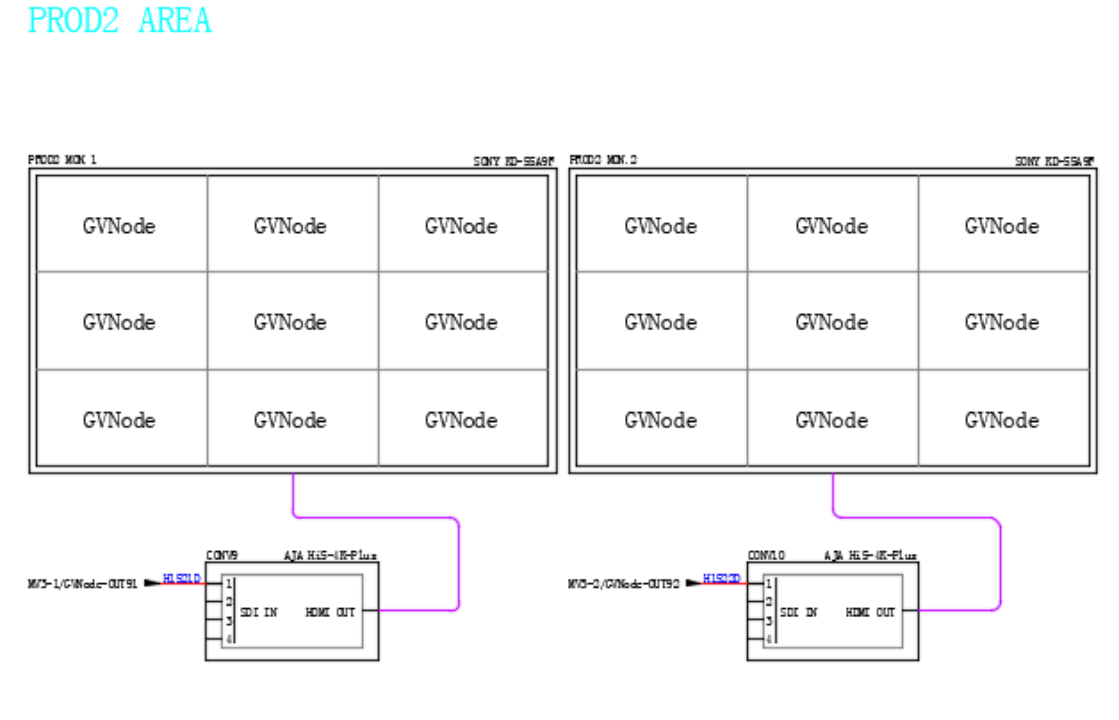

Second Production Area 4K Switcher
- SONY XVS-8000 1M/E 4K switcher with 40 4K inputs and 16 4K outputs
- 1 M/E with 20 direct-cut buttons
- Each M/E has 4 full-function key controllers in 4K mode and 8 full-function key controllers in HD mode
- 1 channel 4K DME
- Built-in frame memory of 64G
- 2-channel picture splitter
IP Matrix
- Huawei CE8850-64CQ-EI
- 64 100GE QSFP28 interfaces
- 12.8Tbps switching capacity, 4482Mpps forwarding performance
- 2RU size
- Power consumption: 965W
IP Control Server
- SONY PWS-110NM1
- SONY LSM IP control system
- 1RU size
Audio
- LAWOMC²56 digital mixer with 512 IP inputs and 512 IP outputs
- 48 physical fader DSP processing channels
- Backup mixer configuration: YAMAHA DM1000
- Speaker brand/quantity: Genelec 8030C, Quantity: 7
- Genelec 8010A, Quantity: 2
- Genelec 7350A, Quantity: 1
- Microphone configuration: Sennheiser 416
- Directional microphones, Quantity: 12
- Sennheiser 418 stereo directional microphones, Quantity: 4
- RODE directional microphones, Quantity: 2
- CM-CU21 commentator system, Quantity: 2
Cameras
- Camera model: SONY HDC-4300, Quantity: 24
- Base station model: SONY HDCU-4300, Quantity: 24
- Standard lens model: Fujinon UA24x7.58BERD, Quantity: 8
- Wide-angle lens model: Fujinon UA14x4.5BERD, Quantity: 8
- Telephoto lens model: Fujinon UA46x9.5BERD, Quantity: 6
- Box-type large zoom model: Fujinon UA107x8.4BESM, Quantity: 2
- Tripod model: Sachtler 250PLS, Sachtler 180PLS

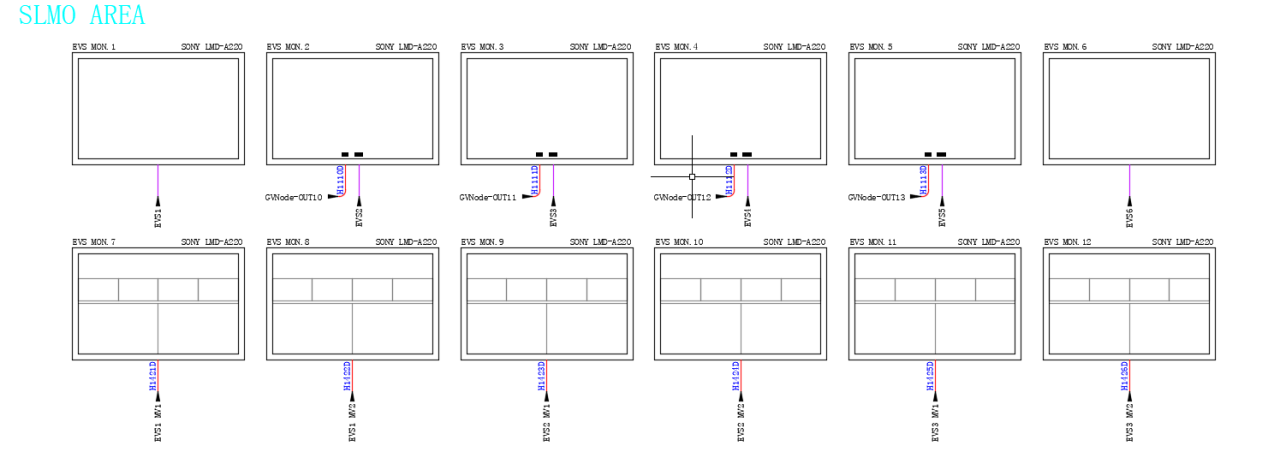

Record And Playback
- Hard disk recorder specifications/model: AJA KI PRO Ultra PLUS, Quantity: 4
- EVS specifications/model: EVS-XTVia 6 channels, Quantity: 3
- EVS remote control panel model: LSM, Quantity: 6
Communications
- Communication matrix model: Riedel Artist Matrix, Scale: 128 channels
- Panel configuration model: RSP-1232HL-PRO, Quantity: 2
- Features: 32-key color panel with auxiliary interface
- Panel configuration model: RSP-2318-BASIC, Quantity: 13
- Features: 12-key color panel with auxiliary interface
- Four-wire to two-wire device model: C44 PLUS, Quantity: 1
- BOLERO wireless beltpack system
- Antenna base station model: BL_ANT_1010_19G_BR, Quantity: 2
- Wireless beltpack: BL_BPK_1006_19_BR, Quantity: 10
- Intercom channels: 2
- Model MOTO GP328, Quantity: 16
Graphics
- Subtitle machine model: NovaStar CDV A10 4K, Quantity: 2

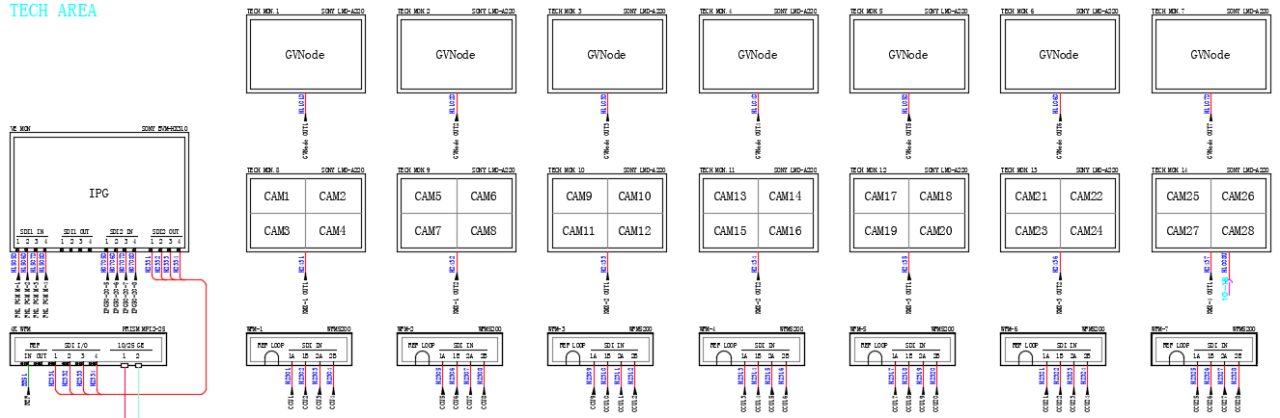

Support Equipment
- Monitor screen size: 55 inches
- Model: SONY KD-55A9G, Quantity: 10
- IP peripheral chassis model: SONY NXL-FR316, Quantity: 2
- IP peripheral board model: SONY NXLK-IP50Y, Quantity: 24
- Baseband peripheral chassis model: GV DENSITE3
- Embedder: MDX-3901 8-channel AES audio embedder, Quantity: 2
- Down converter: SONY HDC-4000, Quantity: 2
- Frame synchronizer: FOR.A FA-9600, Quantity: 4
- SONY NXLK-IP50Y+MC50, Quantity: 6
- HD video splitter: HDA-3911, Quantity: 31
- Analog audio splitter: ADA-1023, Quantity: 2
- Digital audio splitter: DDA-1133, Quantity: 2
- Analog video splitter: VEA-1002, Quantity: 6
- IP video splitter: GV NODE KMX-4921
- Sync system equipment model: SPG8000A, Quantity: 2
- Sync inverters model: ECO8000, Quantity: 1
- Clock system equipment model:
- AC-ACO_LTC time code converter, Quantity: 1
- AC-EBUD12 time code distributor, Quantity: 2
- AC-TDCEE triple countdown controller, Quantity: 1
- AC-S002NE clock display unit, Quantity: 3
- Other: GPS mushroom heads, Quantity: 2
